Service & Web UI

The Papercut SMTP Service is an optional background component that receives email even when the desktop app isn't running — as a Windows Service or a Docker container — and includes a browser-based UI for viewing messages.

The service is optional

For normal desktop use, the Papercut app alone is a complete SMTP server and viewer. Install the service for always-on setups, shared dev servers, or headless environments.

Web UI

The service serves a web interface at http://localhost:8080 by default. The desktop app shows the same UI in its window:

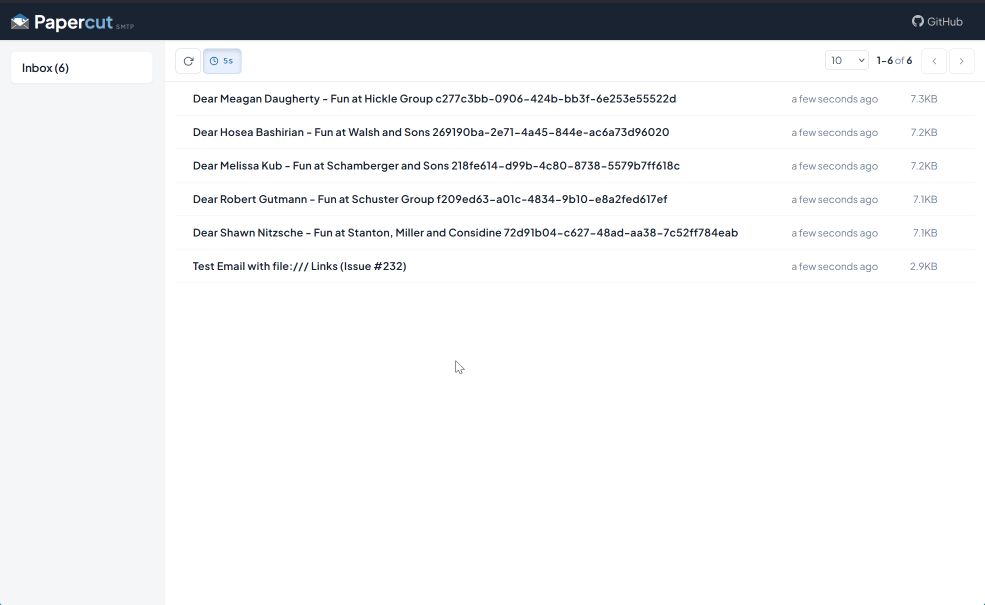

Papercut SMTP Web UI - Message List

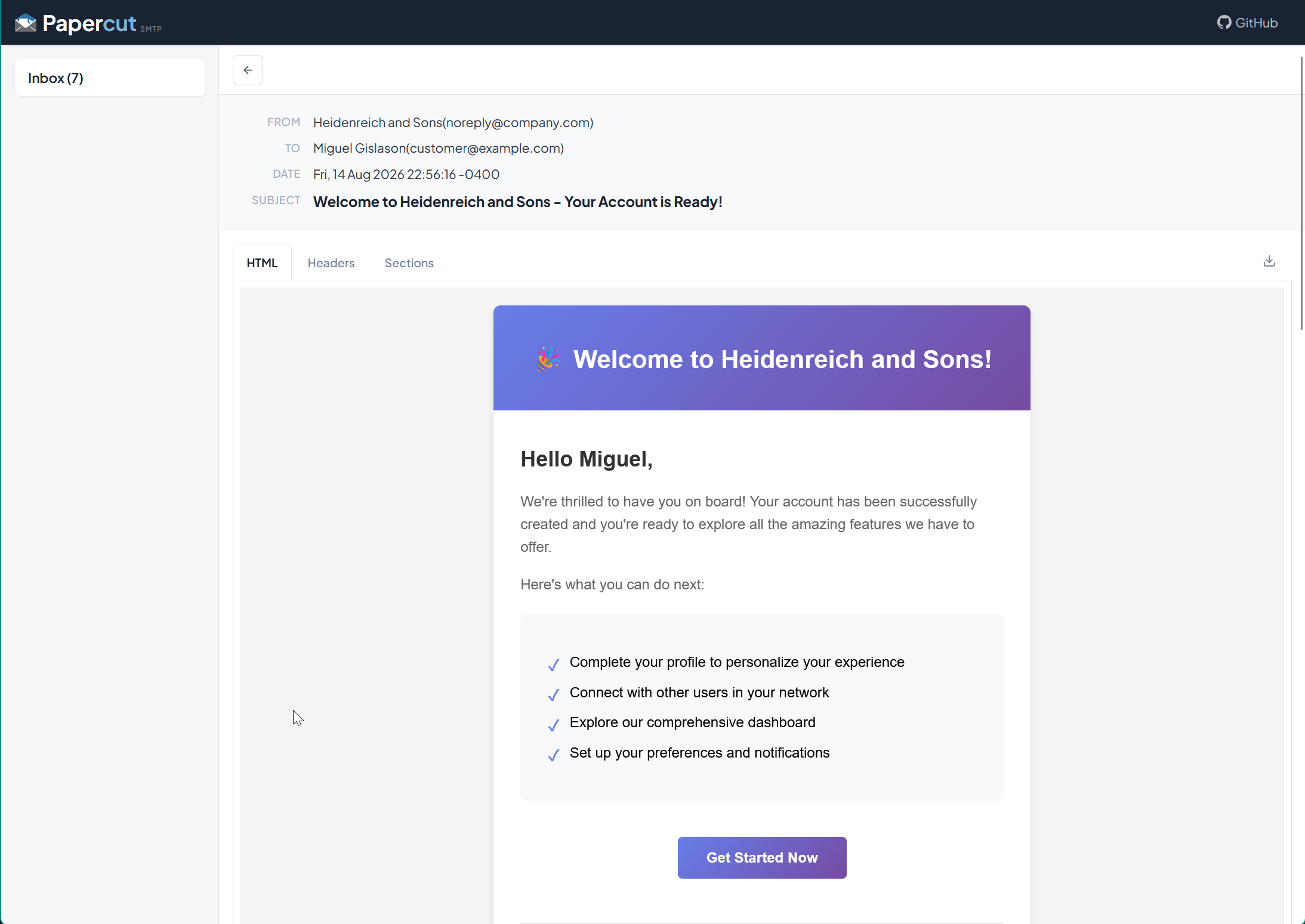

Papercut SMTP Web UI - Message Detail in Dark Mode

Install as a Windows Service

  1. Download Papercut.Smtp.Service.*.zip (x64, x86, or ARM64) from the latest release
  2. Extract it anywhere
  3. Run the install script as administrator:
  4. install-papercut-service.bat (double-click), or
  5. .\install-papercut-service.ps1 (PowerShell)

The service installs with automatic startup and starts immediately. To uninstall, run uninstall-papercut-service.bat / .ps1.

You can also run it as a plain console app — just execute Papercut.Service.exe.

Configuration

The service needs no manual configuration: change its settings under Options and its rules under Rules in the web UI. If the desktop app runs on the same machine, it uses a running service instead of starting its own, so those settings and rules apply there too.

For manual configuration, the service uses layered files (highest priority first):

File Purpose
Papercut.SMTP.Service.Settings.json User settings — UI changes are saved here (SMTP IP, Port, etc.)
rules.json Persisted rules
appsettings.Production.json Docker/production overrides (non-privileged ports)
appsettings.json Baseline defaults (SMTP port 2525, IP Any)

Restart the service after manual edits.

Common changes

SMTP port — Papercut.SMTP.Service.Settings.json:

{ "Port": "2525" }

Web UI binding — appsettings.json Urls setting:

{ "Urls": "http://localhost:8080" }

Use http://0.0.0.0:8080 to listen on all interfaces — but read the warning below.

Path prefix (reverse proxy / ingress) — serve the web UI under e.g. /webmail:

{ "HttpPathPrefix": "/webmail" }

Network exposure

When binding to 0.0.0.0, +, *, or a LAN IP, the web UI is reachable from other machines — and Papercut has no built-in authentication. Use firewall rules or a reverse proxy with auth in front of it.

Rate limiting — reject mail once a quota is hit, so you can test how your application handles a mail server that is throttling it (appsettings.json):

{
  "SmtpServer": {
    "RateLimit": "500/1h",
    "RateLimitReplyCode": 451
  }
}

RateLimit is <count>/<window>, where the window is a number followed by s, m, or h — for example 500/1h, 5/10m, or 100/30s. Use * (the default) for no limit.

Once the limit is reached, Papercut rejects at MAIL FROM until the window resets:

451 4.7.1 Message rate limit exceeded (500 per hour)

RateLimitReplyCode accepts any 4xx or 5xx reply code — 421, 451 (the default), 452 and 550 are the usual choices. A 4xx code tells the sending client the failure is temporary and worth retrying; a 5xx code tells it the message was permanently refused.

The count is global to the server rather than per-sender or per-IP, and the window is fixed: it starts when the first message arrives and resets in full once it expires.

Environment variable form (Docker): SmtpServer__RateLimit and SmtpServer__RateLimitReplyCode.

API

The web UI is backed by a small HTTP API (/api/messages, etc.) you can script against — handy for asserting "an email was sent" in end-to-end tests. Explore the endpoints via your browser's dev tools on the web UI.

Searching messages

GET /api/messages?search=... returns only the messages containing every word, ignoring case, anywhere in the subject, sender or recipient addresses, body text or attachment names. Words of 3 or more characters also match inside longer words, so part of an address or a code works.

curl "http://localhost:8080/api/messages?search=jane@example.com%20reset"

totalMessageCount is the number of matches and inboxCount the number of messages overall; page through the matches with start and limit as usual.

Search uses an index file, papercut-index.db, kept beside the messages (in Docker, in the /app/Incoming volume). It also remembers which messages have been opened. It is rebuilt from the .eml files if deleted.

Creating a message

You can put a message straight into Papercut without SMTP, which makes it a handy local notification system: it shows up in the inbox and raises a desktop notification like received mail, and rules run on it.

curl -X POST http://localhost:8080/api/messages   -H "Content-Type: application/json"   -d '{"subject": "Deploy finished", "from": "CI <ci@example.com>", "markdown": "# All green

- **api** deployed
- **web** deployed"}'

PUT works the same way. It returns 201 with the new message's summary, including its id.

Field
subject Subject, and the notification text
markdown Body, rendered to HTML (tables and the other common extensions work); the source becomes the plain text part
html Body as HTML. Use this or markdown, not both
text Plain text body
from One address. Defaults to Papercut <papercut@localhost>
to, cc Comma-separated addresses, optional
notify Raise a notification. Defaults to true; with false the message still appears in the inbox

A subject alone is enough.

Calling the API from a web page

Scripts, curl and MCP clients aren't affected by this. Web pages are: a page on another origin gets 403 from the API, MCP and the live-update hub, so a site you visit can't read or delete your captured mail. The web UI is same-origin.

Behind a reverse proxy, add the web UI's public URL to CorsAllowedOrigins. Without it, the web UI is a blank page or a 403 unless the proxy sets X-Forwarded-Host, or keeps Host and the name is one that needs no setting. nginx does neither by default.

To let your own page call Papercut, or for a reverse proxy, list the origins in CorsAllowedOrigins, separated by ; (Papercut.SMTP.Service.Settings.json, appsettings.json, or the environment variable), then restart:

{ "CorsAllowedOrigins": "http://localhost:3000;https://tools.example.com" }

* allows any origin and any host name, which also lets any website you visit reach your mail. Avoid it outside a locked-down environment.

Reaching Papercut by host name

This check applies to every caller, including scripts and curl. It stops DNS rebinding, where a website points its own domain at your machine.

These work with no setting: IP addresses, localhost, single-word names such as papercut, and names ending in .localhost, .local, .internal, .test or .home.arpa.

Any other name, such as mail.example.com, gets 403 until you add its URL to CorsAllowedOrigins, for example https://mail.example.com. Only the name has to match, so the port doesn't matter. A reverse proxy that keeps Host needs this for its public name.

For AI agents and coding assistants, the service can also expose these operations over the Model Context Protocol — see MCP Server.
